Glaziers Choice Hardware Inc.

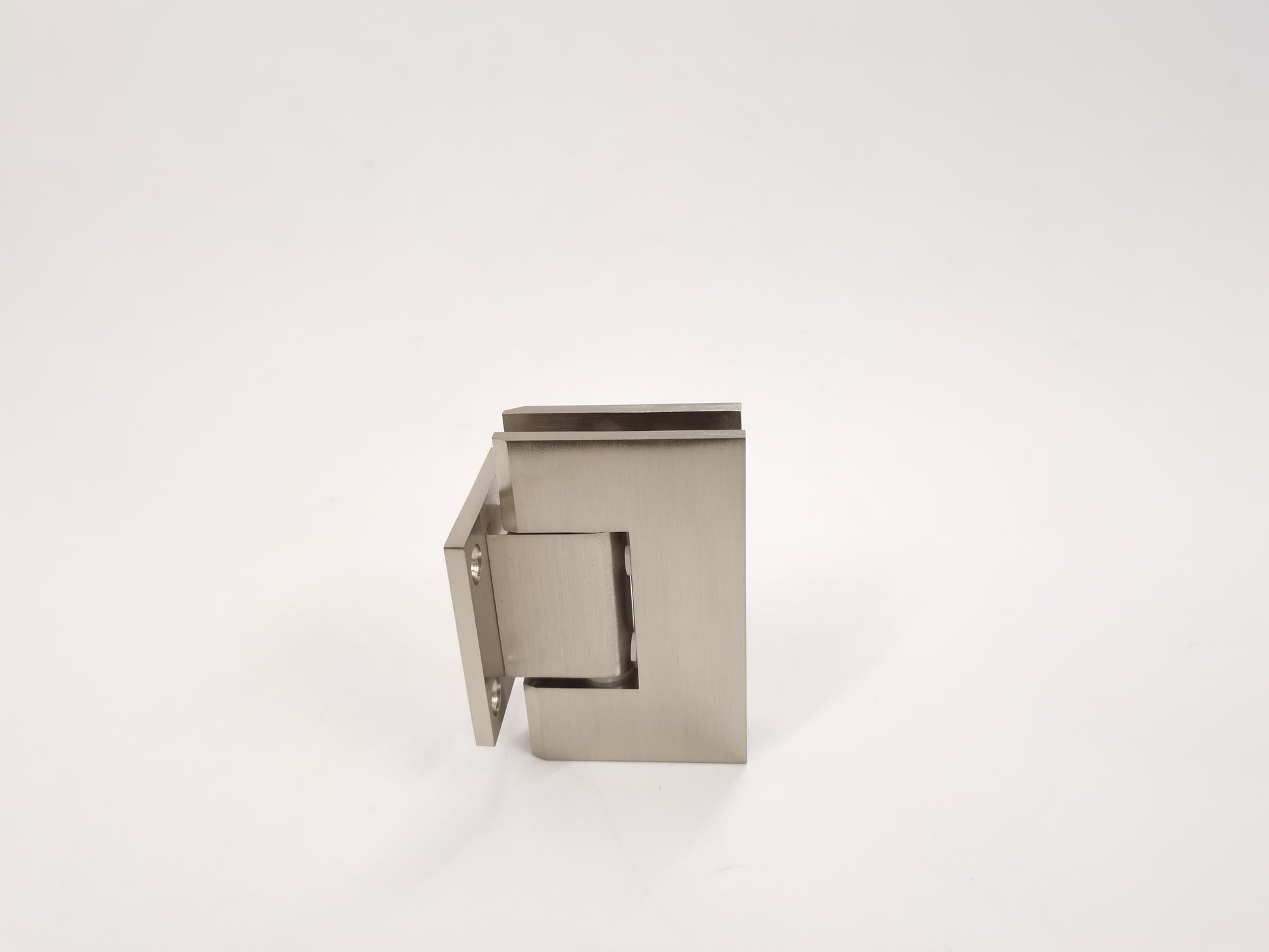

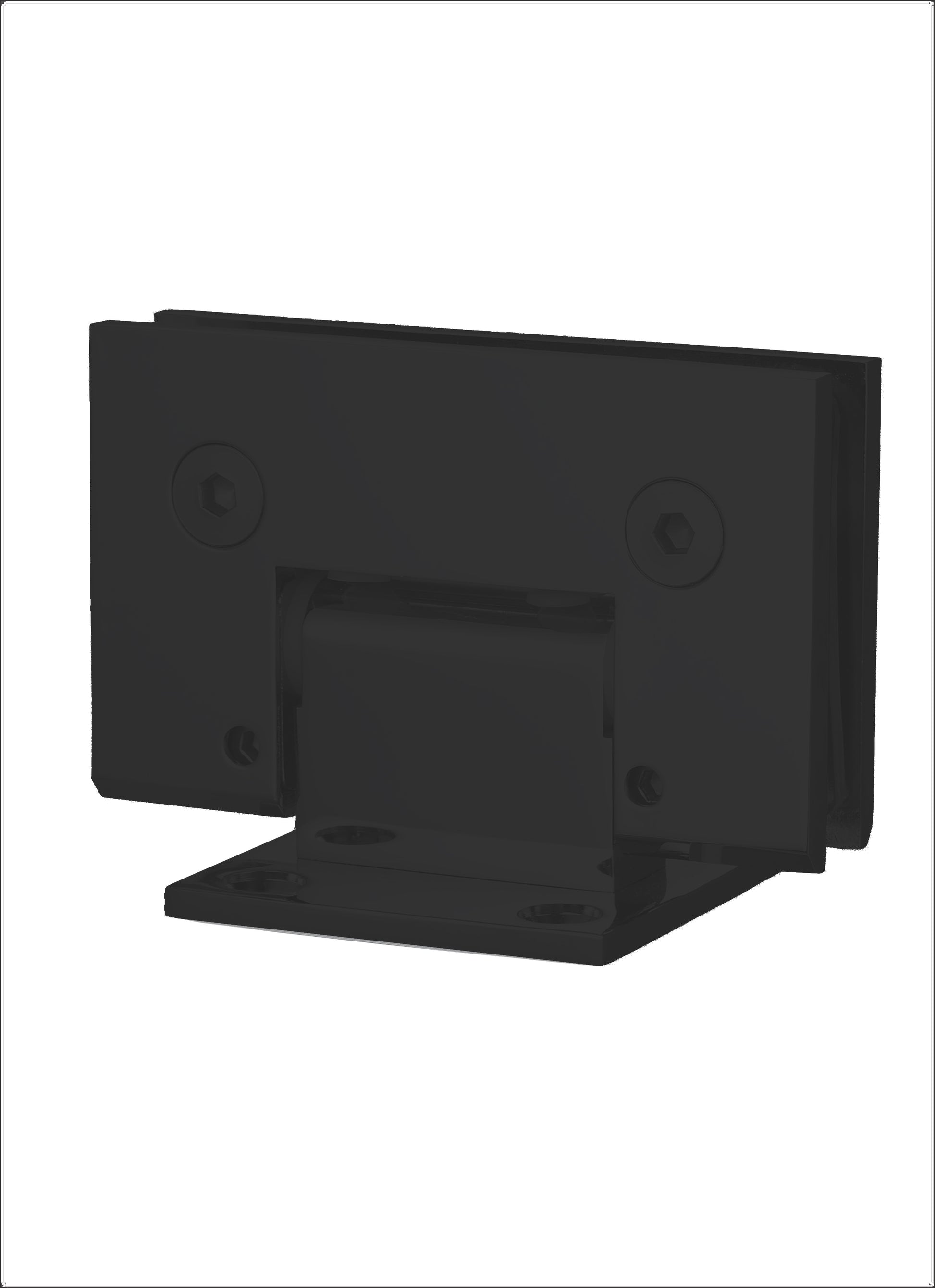

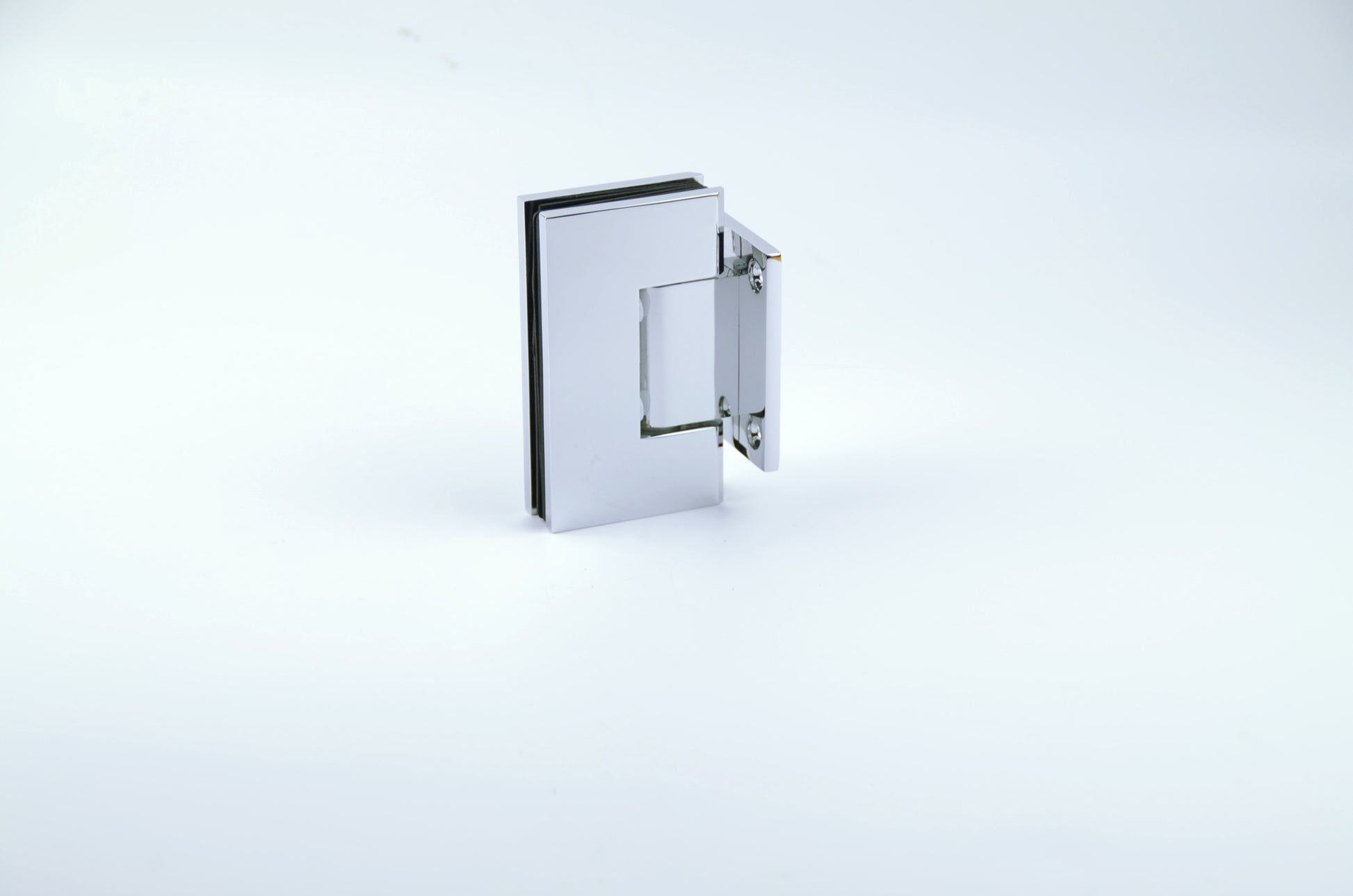

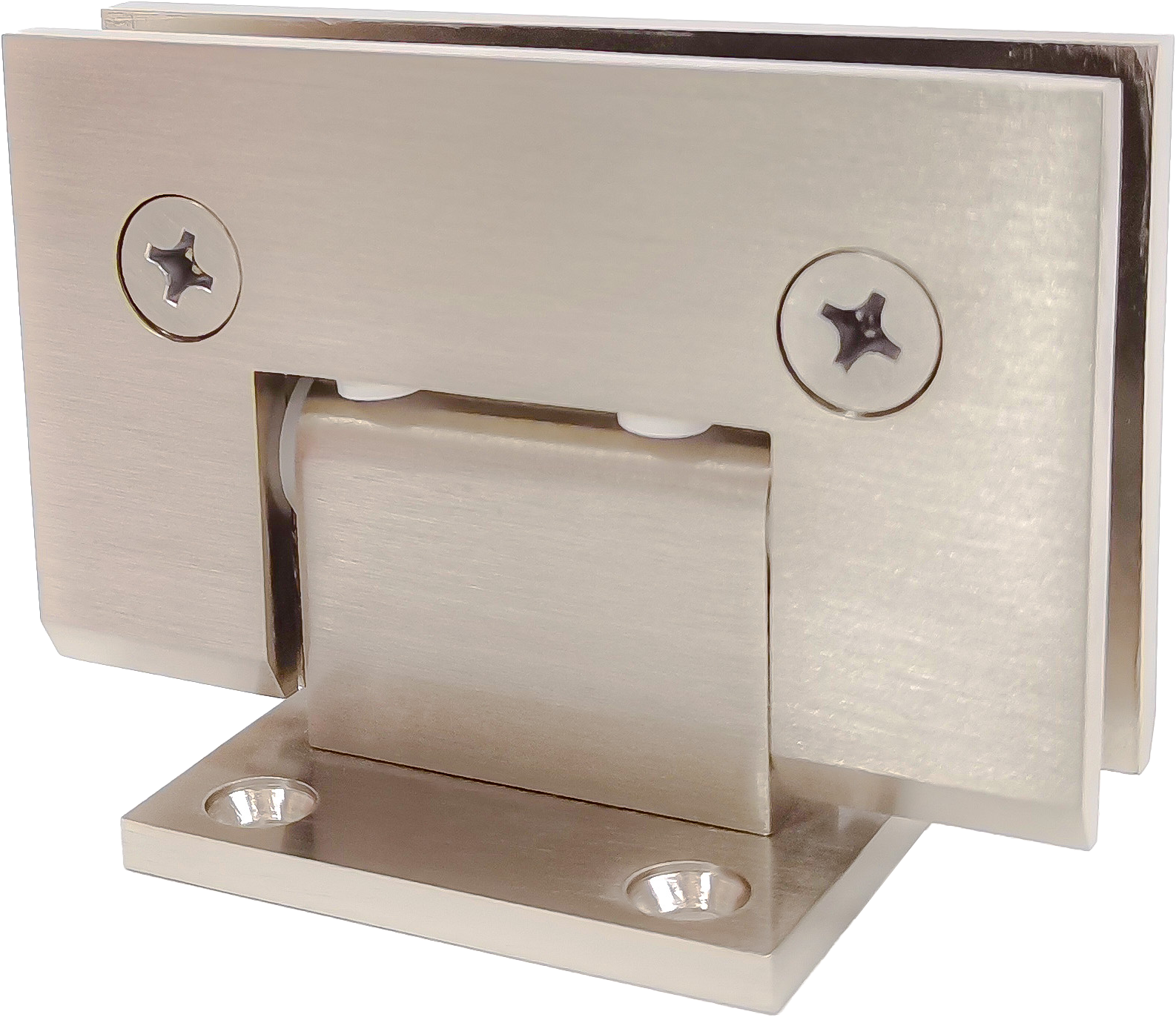

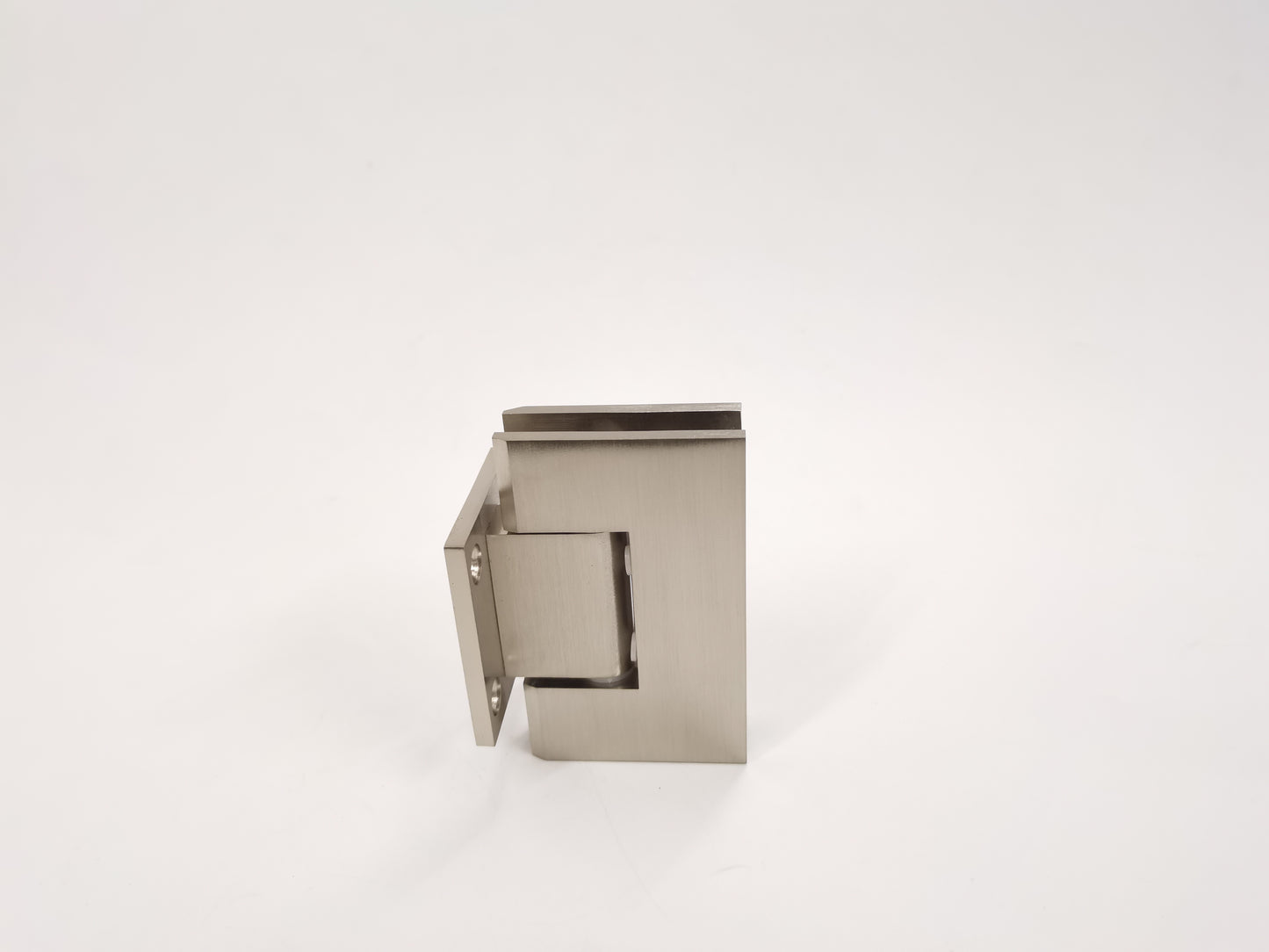

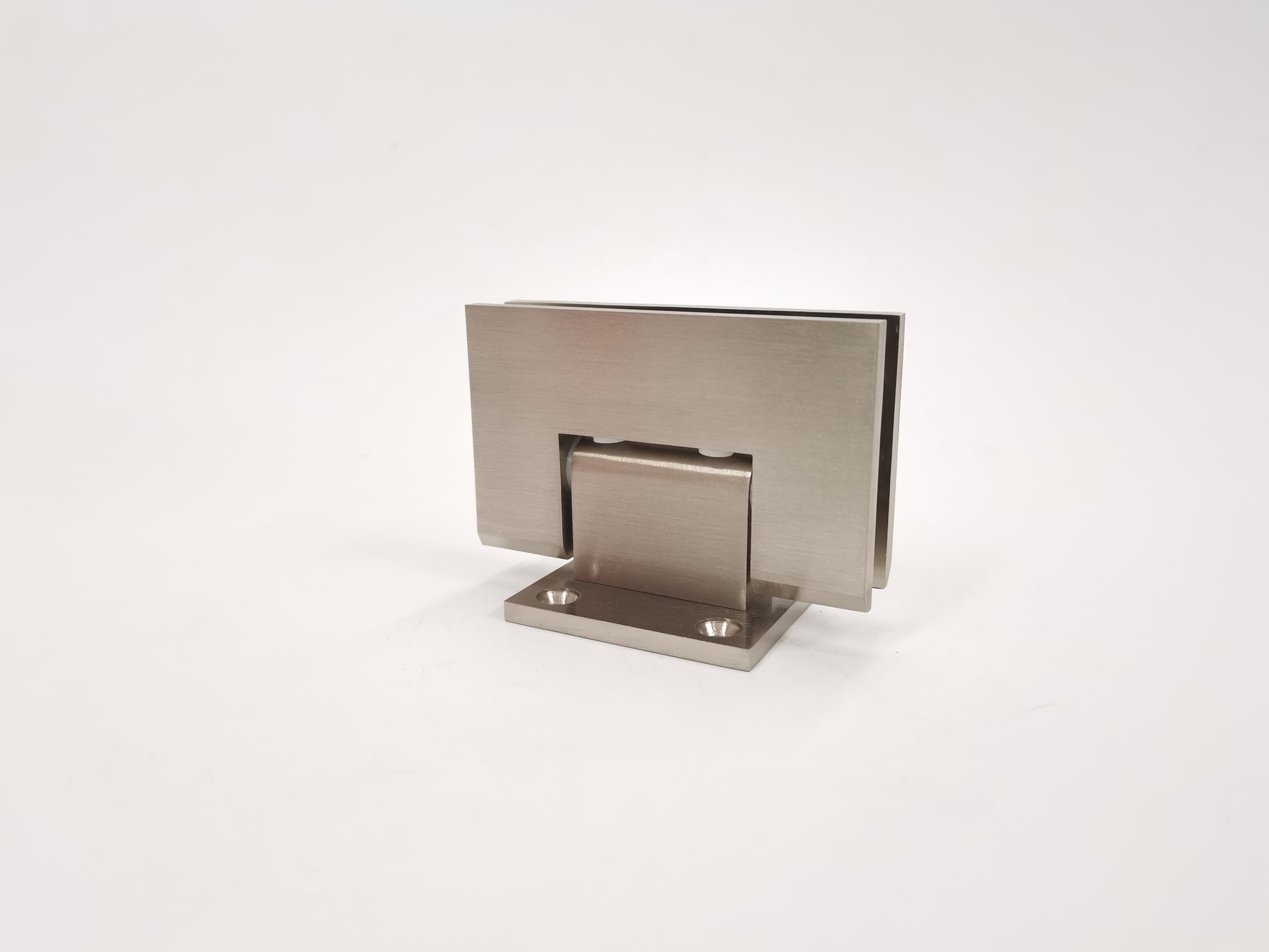

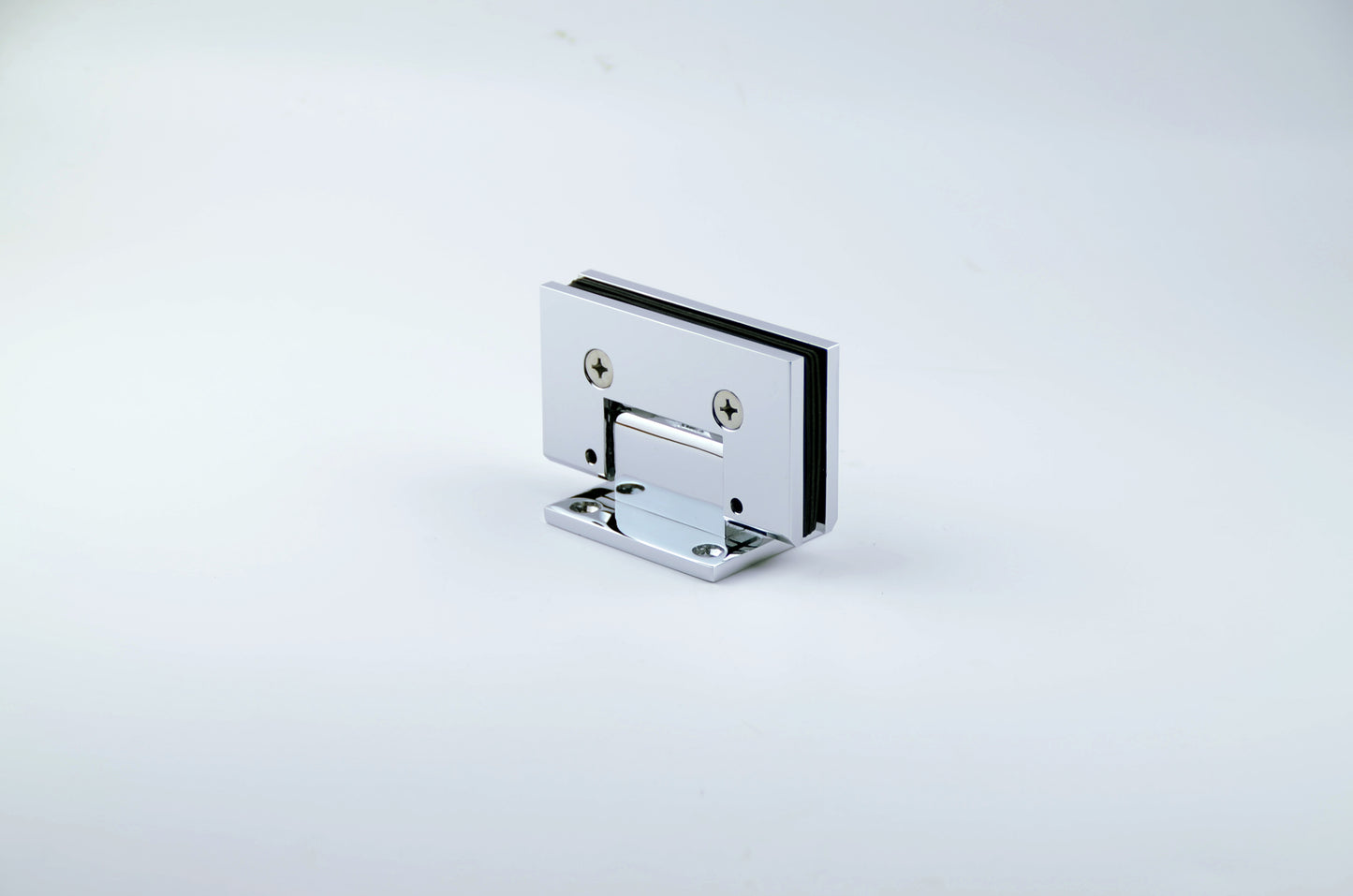

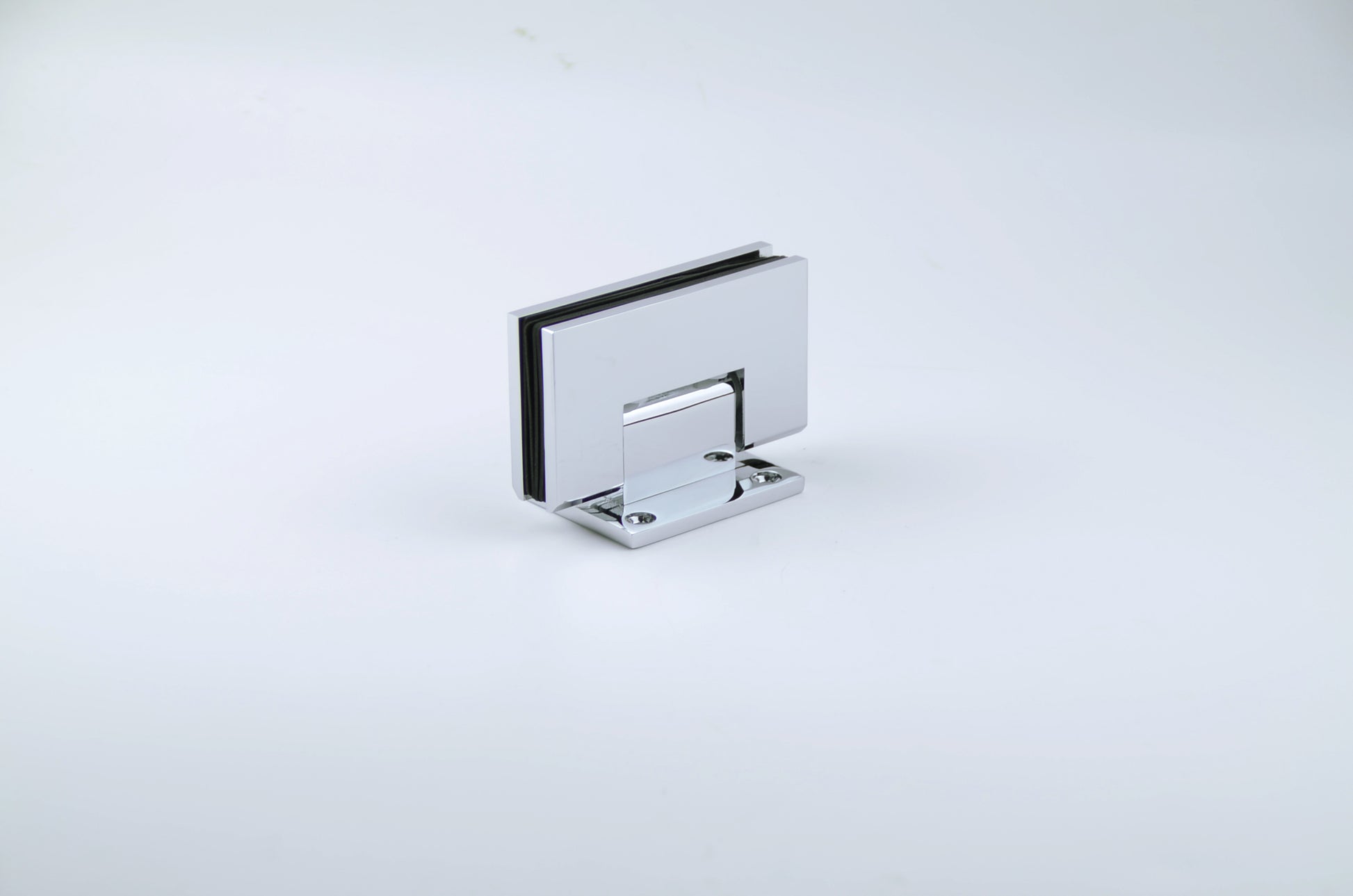

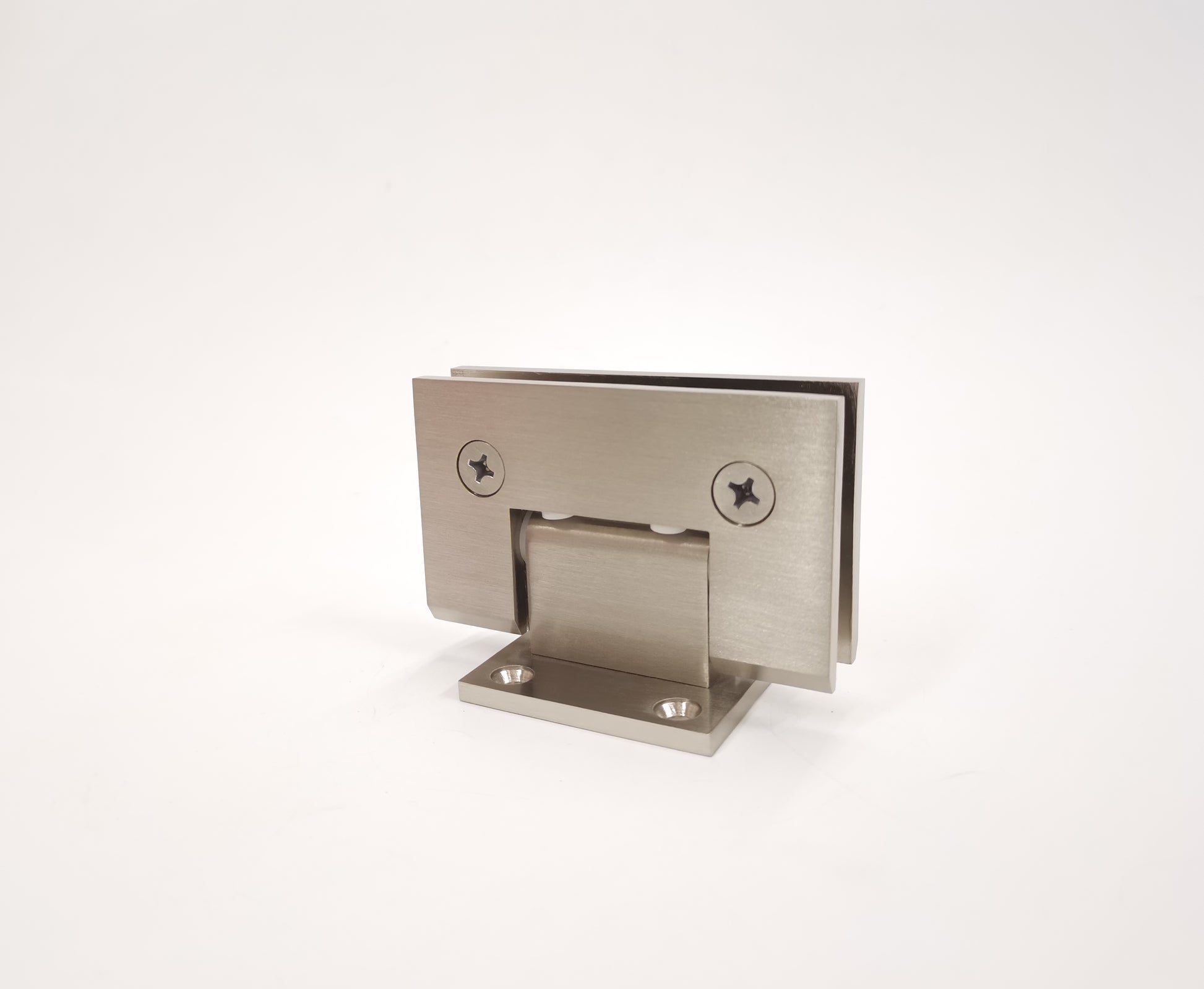

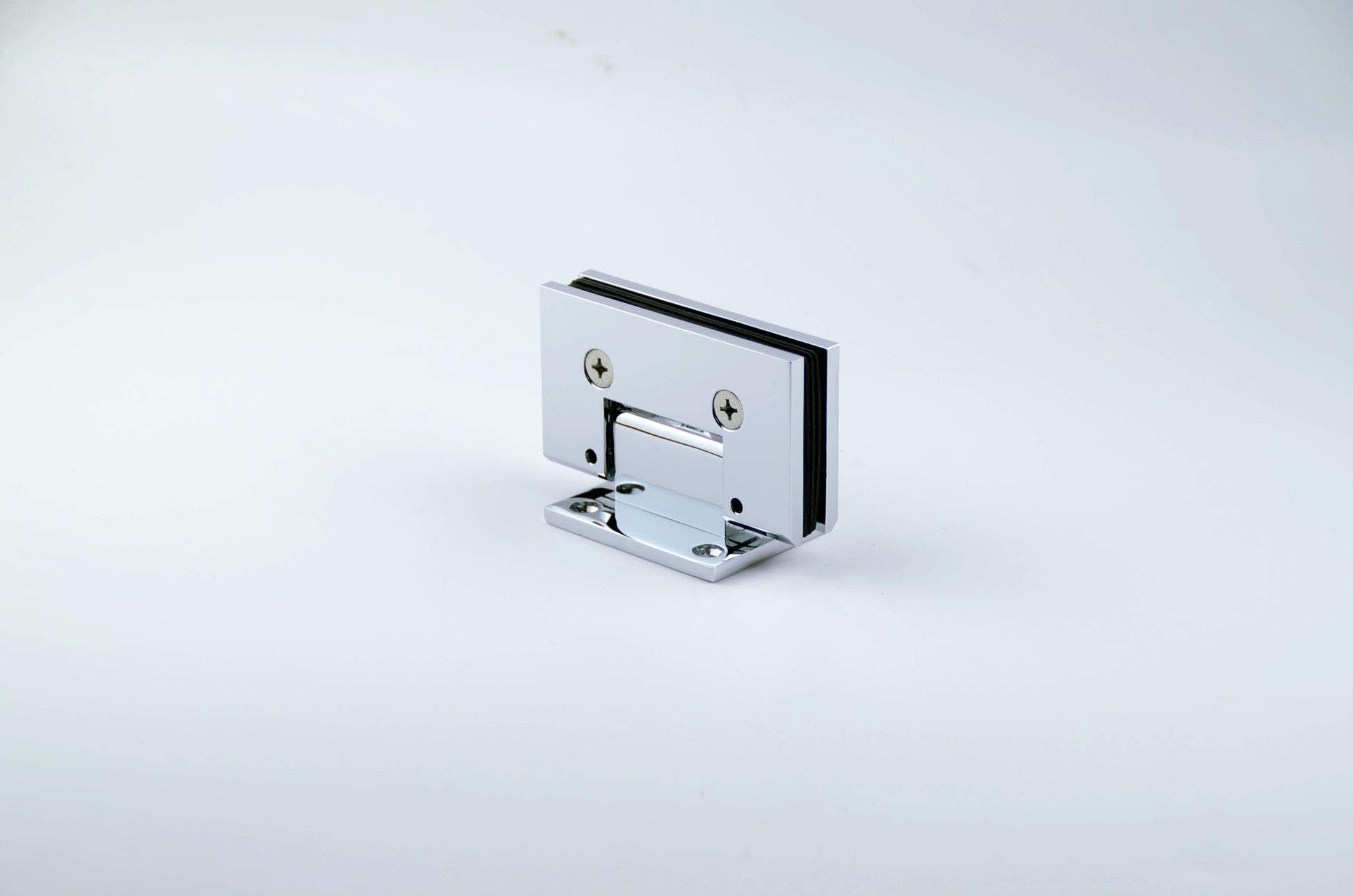

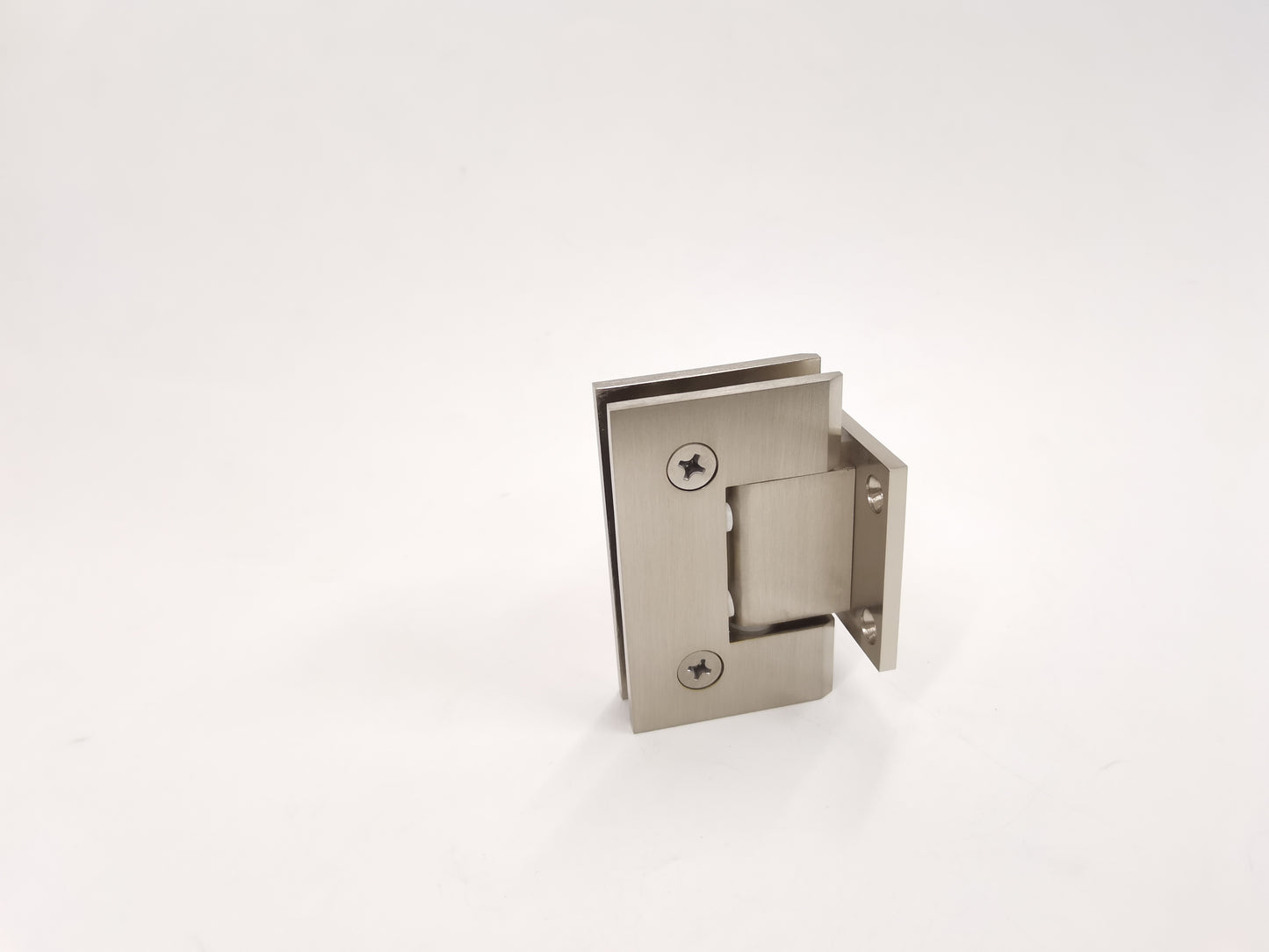

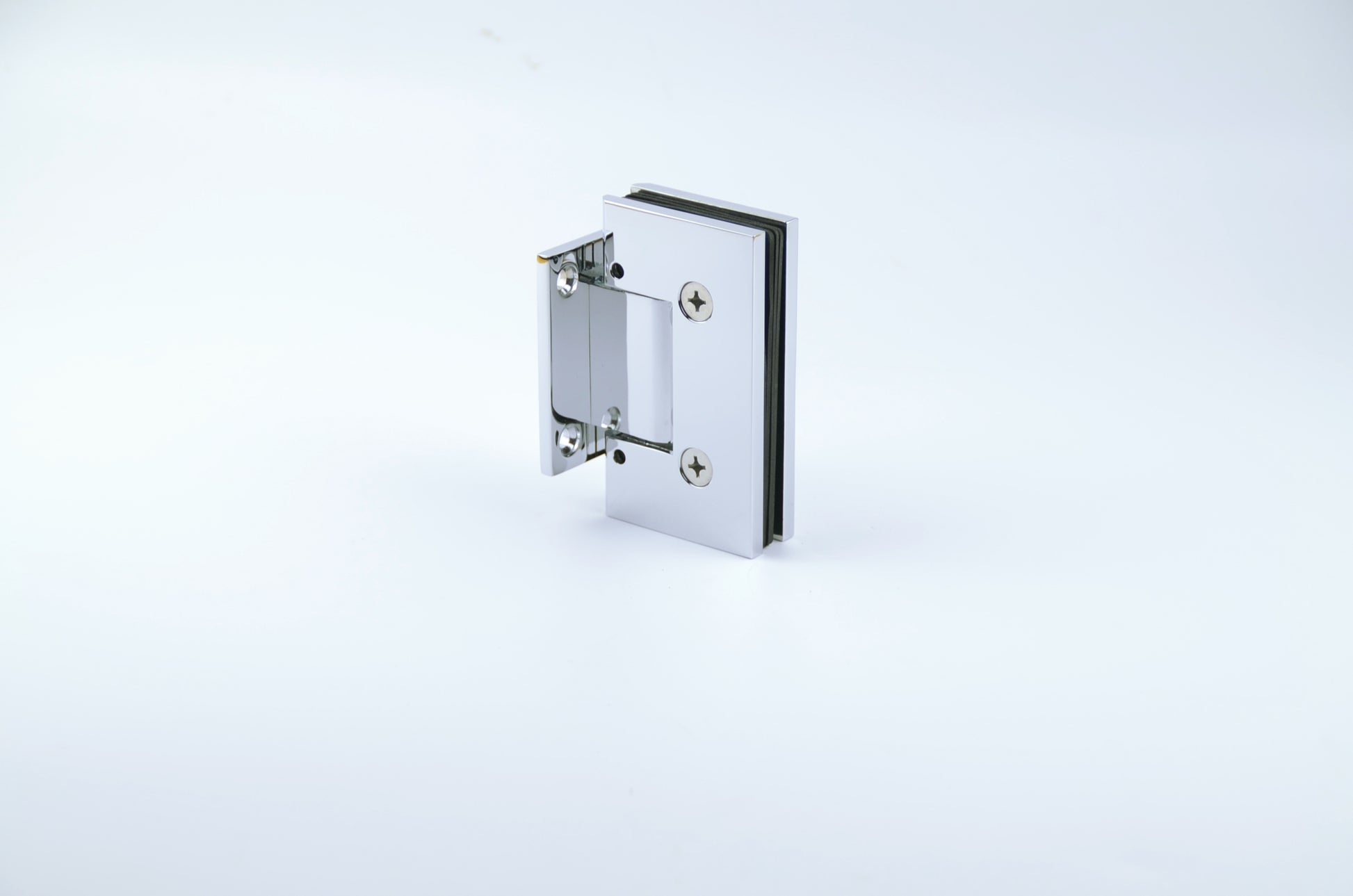

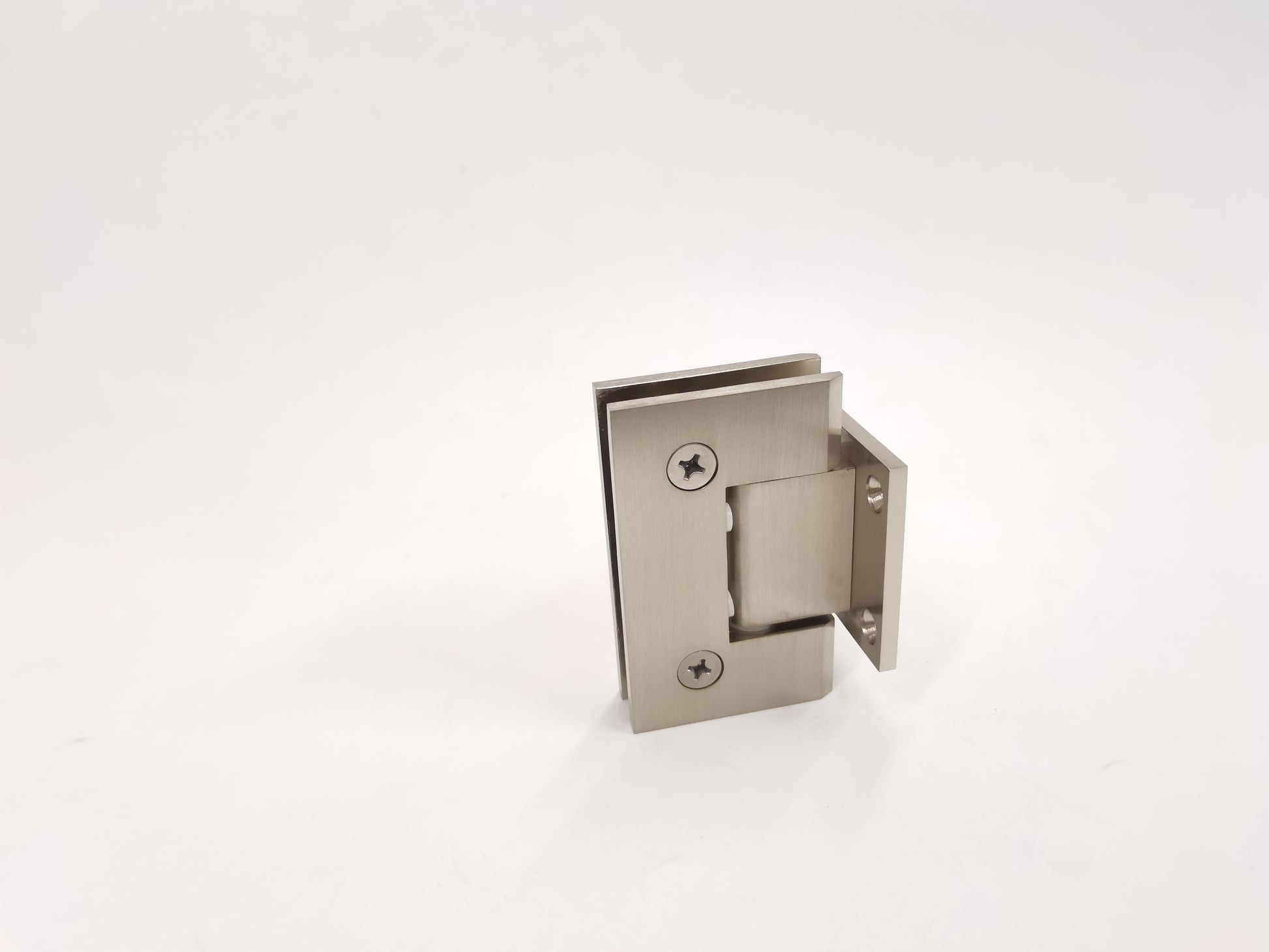

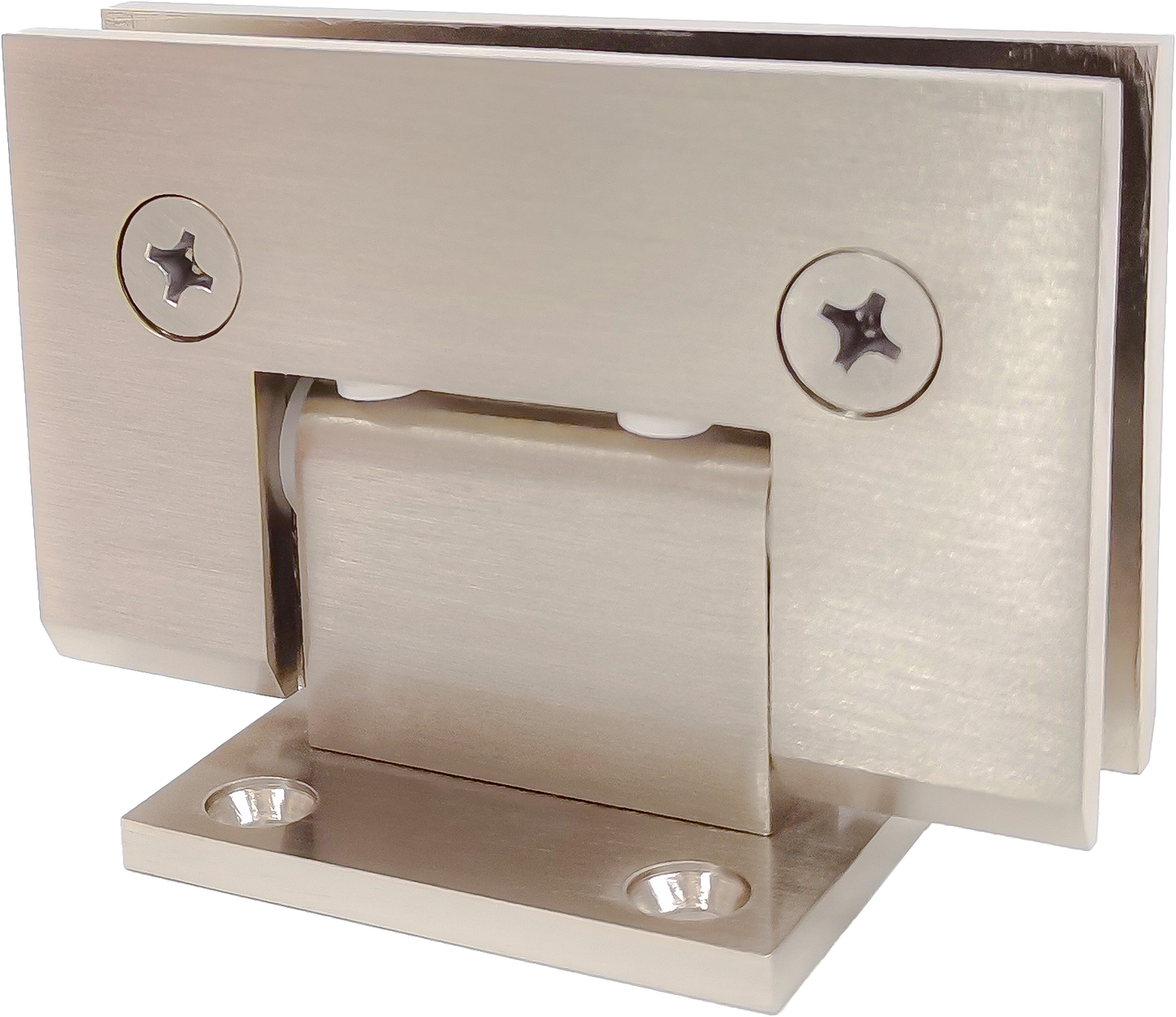

Wall Mount with Short Back Plate Adjustable Ascent Collection Hinge

Wall Mount with Short Back Plate Adjustable Ascent Collection Hinge

Regular price $45.00 USD
Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

5 Degree Pre-Set
No Material Brass
Adjustable Yes
Max Door Weight-2 Hinges (Lbs)
110
Back Plate
Short
Max Door Weight-3 Hinges (Lbs)
165
Edge Profile
Square
Maximum Door Width (Inches)
36
Finish Variable
Mounting Type
Glass To Wall
Glass Fabrication Required
Cutout
Self-Centering
Yes
Glazing Thickness (Inches)
1/2, 3/8
Collection
Ascent

ACH-WM-SP

Description

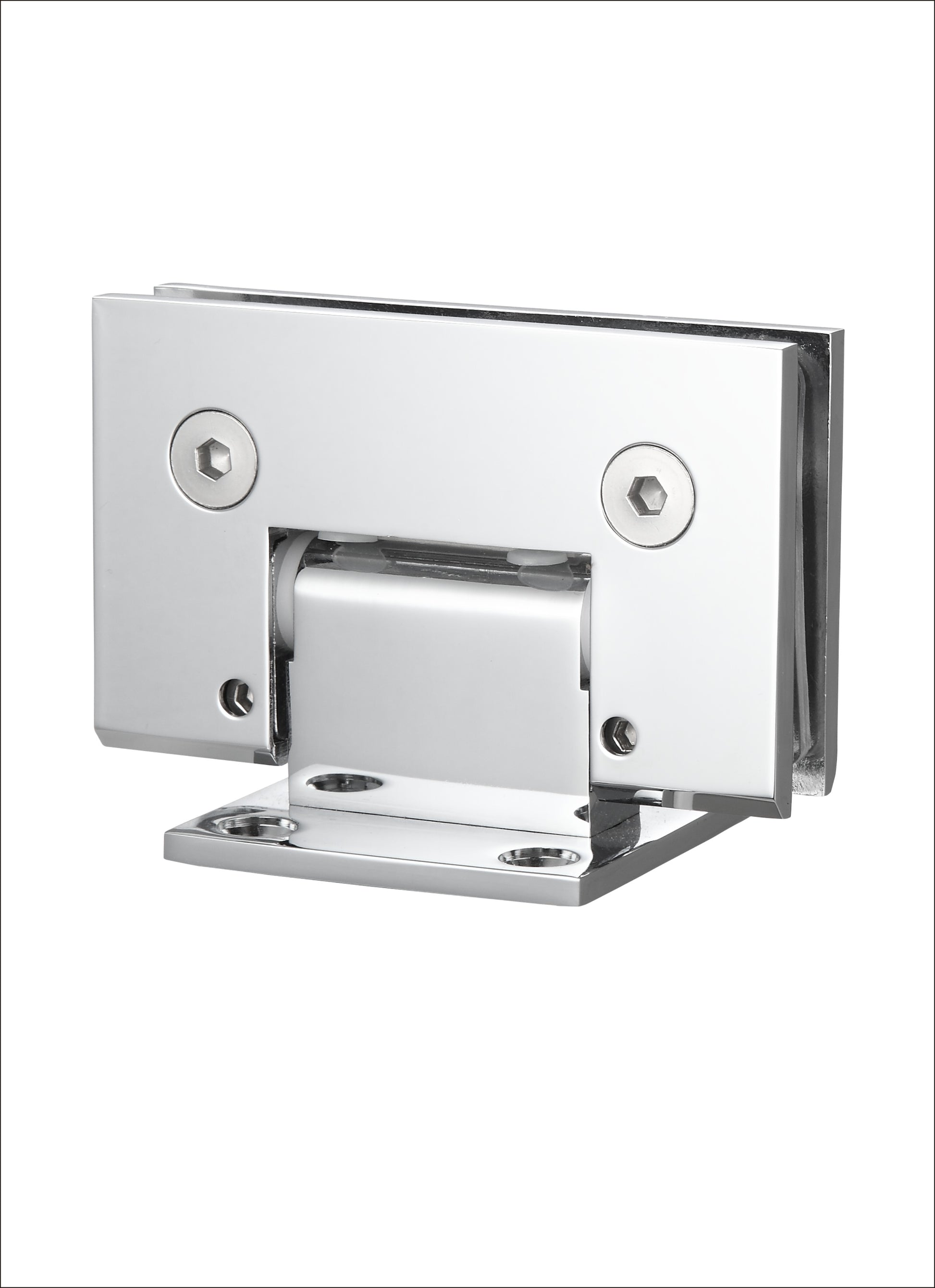

Introducing the Ascent Collection Adjustable Short Plate Hinge, designed to adapt to your preferred angles up to 30 degrees. To adjust the angle, simply loosen the Allen Screws at the back of the hinge, set the door in the desired closing position, and then tighten the Allen Screws again. For optimal results, pair this hinge with a strike jamb and ensure the door presses against the jamb for a secure close.

Please note that most listed shipping weights are approximate and may not have been verified. If you require the exact weight to calculate shipping costs, and this information is necessary for you to finalize your order, kindly contact GCH Customer Service before submitting your order. The product images displayed are either of the actual product or a close representation. Keep in mind that colors may vary depending on your computer's video card settings and your monitor's color calibration.

Docs.

ACH-WM-SP Short Plate Wall Mount CAD Drawings

ACH-WM-SP Short Plate Wall Mount Spec Sheet
